Description

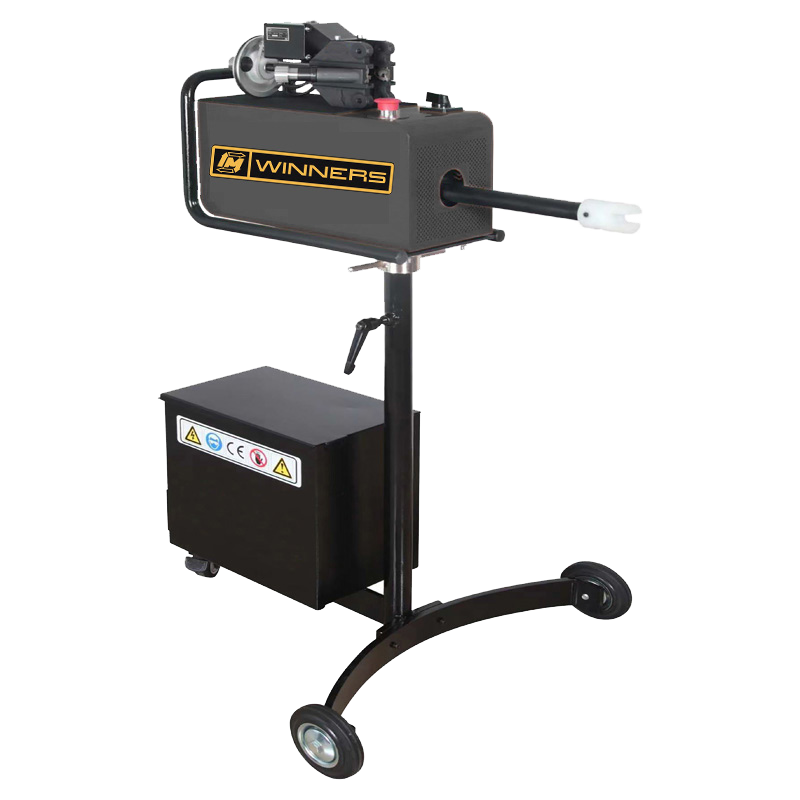

On-car Brake Disc skimmer
This machine can be attached directly on a vehicles for resurfacing.
The existing model is upgraded and remodeled from customer-oriented perspectives to enable easier and safer car brake disc resurfacing.
Resurfacing particularly improves the performance of brake disc and shortens the braking distance to guarantee safer operation.
Features and Benefits
| Features: | Benefits: |
| Powerful motor to drive the hub | Better design, which results in less heat loss and lower noise. |
| Enlarged tool box | Keeping your tools safe and in one place. |
| Extra drawer | Ideal for small parts, tool bits and small hand tools. Creating work space on top of the drive unit. |
| Dedicated plates | For specific vehicles |
| Universal slide mount | Quick mounting |
| A tangible step mechanism of the bi-directional adjusting knob with increments of 0.05mm/0.002 inch | Ensures accurate tip positioning, even on the inner face of the disc. |
| A 32° cutting tip holder | Providing a sharper angle to better reach the entire disc surface. |
| More cutting depth at two sides, up to 0.8 mm./ 0.03 inch in one movement | Creating an even cut of the disc. |
| Semi auto function | The machine will cut the disc by itself leaving the technician free to continue with other tasks, saving on production time. |
| Ergonomic design | Providing safety and easy accessibility to all components |
| User friendly | Easy to operate |
| On-Car Operation | Designed to work directly on the vehicle, allowing technicians to resurface the brake discs without removing them from the vehicle. This saves time and effort compared to traditional off-car brake lathes. |
| Adjustable Settings | Come with adjustable settings for disc diameter, depth of cut, and feed rate, allowing for precise and customized machining. |
| Mounting Adapters | Comes with a variety of mounting adapters and accessories to fit different vehicle makes and models, ensuring compatibility with a wide range of vehicles |
| Portable Design | Portable, making it easy to transport between service bays or to provide on-site brake servicing. |
| Cost-Effective: On-car disc brake skimming machines help extend the life of brake discs by resurfacing them, which is often more cost-effective than replacing the rotors entyrely.Time-Saving: Since the brake disc s can be machined without removal, it saves significant time compared to the process of removing, machining, and reinstalling discs using traditional off-car lathes. Improved Brake Performance: Skimming the brake discs removes surface irregularities, such as scoring and warping, which can lead to improved braking performance and reduced brake noise and vibration. Reduced Downtime: By eliminating the need to remove and replace discs, on-car brake lathes reduce vehicle downtime, allowing for faster turnaround on brake service jobs. Increased Customer Satisfaction: Offering on-car disc machining as a service can increase customer satisfaction by providing a convenient and cost effective solution for brake rotor maintenance. Environmentally Friendly: By resurfacing brake discs instead of replacing them, these machines contribute to reducing waste and environmental impact. Versatility: On-car disc brake skimming machines are versatile and can be used on a wide range of vehicles, including passenger cars, trucks, and SUVs. Consistency: The semi automatic feed control and adjustable settings help ensure consistent and precise disc machining, reducing the likelihood of uneven wear or braking issues. | |
| Training available | Technicians can be professionally trained to use the tyre changer and get the maximum benefit from it. |
| 1 year warranty | The machine will be repaired if there are any factory faults and can be replaced if required. |
| Spares available | Should you have a breakdown you will not have to wait for your machine to be repaired. If there is anything we don’t have, we fly it in directly from the Suppliers. |
| Operational videos | Technicians can learn how to operate the machine by watching a video, which is easier and more simple than written instructions. |
Technical Information
Machining results
Run-out / disc oscillation: < 20 µm Ra / 0.0008
Disc Thickness Variation: < 20 µm Ra / 0.0008
Surface roughness / finish: < 2 µm Ra / 0.00008
Max. brake disc thickness: 39 mm.- 1.54
Max. cutting depth: 0.8 mm.- 0.031 per bit
Incremental cutting scale: 0.05 mm./ 0.002 per click.
Disc lathe
Automatic feed of bits on disc: 8,5 mm/min.- 0.34”/min.
Voltage, acc. to regional specs: 100-240V. Freq. 50/60 Hz
Weight: 6.1 kg
Drive unit
Driving axle rotation speed: 100 rpm.
Voltage, acc. to regional specs.: 100-240V. Freq. 50/60 Hz.
Power: 400 Watt / 0.536 HP.
Current: 3.2 Amps
Torque: 44,8-67,2 Nm
Advised surrounding temp: -5° till +35°C
Sound level: 74 dB(A)
Working height: 100-119,5 cm. / 39.4”-47.0”
Packaging dimensions: 1100*530*340 mm
Packaging weight: 73 kg
